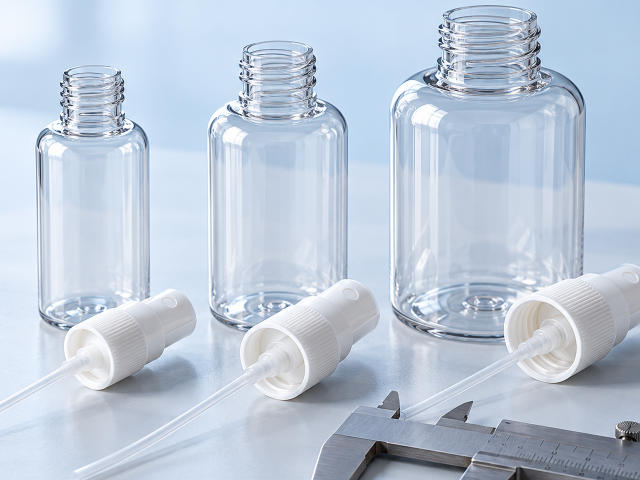

When purchasing spray bottles and sprayers, 20/410, 24/410, and 28/410 are common neck finish designations. Although they look like simple combinations of numbers, they affect whether the sprayer screws on correctly, whether the sealing components engage properly, and whether the complete package performs reliably.

Matching a bottle and sprayer requires more than checking diameter. “It screws on” is not an adequate acceptance criterion. Understanding the designation, reviewing drawings, and testing actual components can help brands and filling companies reduce leakage, thread damage, and assembly interruptions.

1. What Do the Two Numbers in 20/410 Mean?

1.1 The First Number Indicates the Nominal Diameter

In this type of continuous-thread neck finish designation, 20, 24, and 28 identify the nominal thread diameter in millimeters. They describe the size family used to match the bottle neck and closure—not the bottle body diameter or the internal neck opening.

A nominal dimension does not mean that a caliper reading must be exactly 20.00, 24.00, or 28.00 mm. The actual thread outside diameter should be evaluated against the dimensions and tolerances on the applicable drawing.

1.2 The Second Number Identifies the Neck Finish Style

The number 410 is a neck finish designation. It does not mean 4.10 mm, and it is not a direct statement of neck height. It relates to the specified thread and neck geometry and must be interpreted as part of the complete designation.

Consequently, 24/410 and 24/400 should not be assumed interchangeable simply because they share the same nominal diameter. Counting thread turns alone is also insufficient for final identification. Supplier drawings and physical compatibility testing provide a more reliable basis.

2. How Should 20/410, 24/410, and 28/410 Be Matched?

Matching the complete designation is the first screening step, not a final performance guarantee. Suppliers may differ in dimensional execution, tolerances, and sealing design, so the assembled package still requires verification.

The neck finish also does not directly determine output per stroke. Sprayers with the same 24/410 neck size may use different pump engines and nozzles. Dispensing output and spray pattern must be specified separately.

3. Which Dimensions Should Be Checked Beyond the Designation?

3.1 Thread Outside Diameter and Neck Finish Height

The thread outside diameter affects engagement between the sprayer closure and bottle neck. Neck finish height influences the final assembly position and sealing contact.

If the sprayer skirt contacts the bottle shoulder before the sealing component is properly compressed, the assembly may appear tight while remaining vulnerable to leakage.

Dimensions should be measured at the locations specified on the drawing. Measuring only the outside diameter at the top of the neck generally does not provide enough information to confirm thread compatibility.

3.2 Neck Opening and Sealing Contact Area

The internal neck diameter determines whether the lower pump body or an insert can enter the bottle correctly. This dimension is particularly important when the design uses an internal plug seal.

For gasket-based sealing, inspect the condition and flatness of the bottle’s sealing land. Chips, flash, localized deformation, or tilted assembly can interfere with sealing performance.

3.3 Thread Start Position and Engagement

Thread start position, thread profile, and effective engagement affect both the screw-on process and the final assembly condition. Components with the same nominal diameter do not necessarily share every relevant geometric detail.

4. Why Can a Sprayer Screw On but Still Leak?

Being able to screw on a sprayer only demonstrates that the components can engage. It does not prove that thread engagement is sufficient or that the sealing element is compressed correctly.

An incorrect finish, dimensional variation, or cross-threaded assembly can make the sprayer appear secure without creating a reliable seal.

Overtightening is not a dependable solution. Excessive torque may damage threads, deform the gasket, or increase stress in plastic components.

Use agreed assembly conditions and then perform sealing and functional tests appropriate to the product. Different materials, sizes, and sealing designs should not automatically use the same application torque.

5. How Should Compatibility Be Confirmed Before Purchasing?

First, obtain complete specifications and dimensional drawings from the bottle and sprayer suppliers. Confirm the neck finish series and critical tolerances.

Next, conduct trial assembly using bottles, sprayers, gaskets, and dip tubes made from the intended production materials. Display samples alone are not sufficient for performance assessment.

Use the target formulation to evaluate priming, output per stroke, spray pattern, and sealing. If the package will be filled automatically, also verify compatibility with the capping equipment, gripping arrangement, and intended production speed.

For Subir spray bottle and fine mist sprayer projects, providing the neck drawing, formulation information, capacity, and appearance requirements together helps align connection dimensions with functional needs.

A complete matching process follows four steps: specification matching, drawing review, physical assembly, and performance testing. The designations 20/410, 24/410, and 28/410 help narrow the selection, but actual package performance determines final compatibility.
