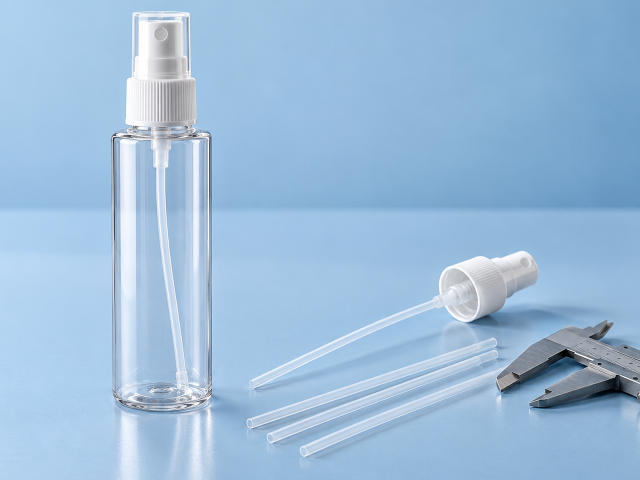

The dip tube inside a spray bottle may look simple, but it directly affects how reliably liquid enters the pump. A tube that is too short may stop drawing product while a significant quantity remains in the bottle. A tube that is too long may bend excessively, restrict its inlet, or create assembly difficulties.

For spray bottle sourcing and customization, dip tube length should not be determined solely from the bottle’s external height. A reliable approach establishes a consistent measurement reference, considers the internal bottle geometry and pump design, and confirms performance using the actual formulation.

1. First Confirm Where Dip Tube Length Is Measured From

Suppliers may define “dip tube length” differently. Some specify the cut length of the tube itself. Others measure from the sprayer gasket to the tube tip, while some use the pump’s tube connection as the reference point.

These measurements are not interchangeable. Two components both described as having a “150 mm dip tube” may place the inlet at different positions after assembly if the measurement starts from different locations.

Some packaging suppliers explicitly measure from the gasket to the tube tip. Quotations and purchase orders should therefore identify both the measurement reference and an accompanying drawing.

For angle-cut tubes, also specify whether the measurement ends at the longest point, shortest point, or another defined location. A length without a measurement convention can lead to production cutting errors.

2. Why Not Cut the Tube According to the Bottle’s Overall Height?

The external height includes the bottle base thickness and neck structure. It does not represent the internal distance available to the dip tube. A raised internal base, shoulder geometry, and the pump’s insertion depth also affect the assembled space.

Even bottles with the same capacity may require different dip tube lengths. Tall, narrow bottles, flat bottles, and wide-base bottles should be evaluated separately for internal depth, inlet position, and performance when tilted.

3. What Happens If the Dip Tube Is Too Short?

3.1 More Product May Remain in the Bottle

When the liquid level falls below the tube inlet, the pump begins drawing air. The result may be intermittent spraying or no output, even though product remains at the bottom.

Residual product is also influenced by bottle geometry, formulation viscosity, and operating position. It should not be attributed entirely to tube length. Measure the remaining quantity under agreed conditions before deciding whether an adjustment is necessary.

3.2 The Pump May Draw Air Earlier When Tilted

Tilting the bottle causes liquid to collect on one side. If the dip tube inlet is away from that area, it may become exposed above the liquid surface and draw air.

A bottle that dispenses most of its contents upright may therefore behave differently when tilted. Correct tube length alone does not make a conventional dip-tube sprayer suitable for use at every angle.

4. What Happens If the Dip Tube Is Too Long?

An excessively long tube may form a large bend at the base, kink, or flatten, increasing resistance to liquid flow. Its tip may also press against the wall or base, partially obstructing the inlet and causing slow refill or inconsistent spraying.

Long tubes can also be more difficult to guide through the neck during automatic assembly, increasing the need for careful feeding and alignment.

However, a gentle curve is not automatically a defect. Some bottle-and-sprayer combinations intentionally allow the tube to curve toward one side of the base to improve liquid pickup.

Neither “the tube must be perfectly straight” nor “a longer tube always empties the bottle better” is a reliable design rule. The tube should remain open, avoid kinking, and demonstrate satisfactory performance in testing.

5. How Can the Correct Dip Tube Length Be Established?

5.1 Define an Initial Range from the Assembly Drawing

Establish the measurement references for the pump, bottle, and tube. Then use the internal dimensions to identify a suitable trial range.

If the tube connection is the starting point, consider the distance from that connection to the intended pickup location, together with insertion allowance and any intended curvature.

There is no universal “subtract a few millimeters” formula suitable for every package. The required allowance depends on base geometry, tube stiffness, and tip configuration.

5.2 Prepare Samples with Closely Spaced Lengths

Within a reasonable range, prepare several samples with slightly different tube lengths. Compare assembly behavior and liquid supply at low fill levels.

Keep the pump model, formulation, fill volume, and actuation method consistent. Otherwise, changes in these variables may obscure the effect of tube length.

5.3 Evaluate Both Dispensing Stability and Residual Product

Testing should cover initial priming, normal liquid levels, near-empty conditions, and expected tilted positions.

Record interrupted spraying, actuator return, continuous output, and residual product. Choose the length that provides balanced performance rather than selecting solely for the lowest measured residue.

6. What Should Be Controlled During Mass Production?

Once the length is approved, define the cutting dimension, tolerance, tip shape, and connection requirements. Cuts should be clean, without loose fragments, burrs, or flattened openings. The tube must also fit securely onto its connection.

Changes to the bottle, pump body, tube material, or formulation should trigger an assessment of whether further validation is needed.

For Subir spray bottle and sprayer projects, reviewing the actual bottle sample, target formulation, and intended use together provides a more reliable basis than selecting a tube from bottle capacity alone.

The correct dip tube length is established through internal dimensions, assembly geometry, and dispensing tests. Maintaining an unobstructed inlet and reliable liquid pickup at low levels helps balance user experience with consistent production quality.
