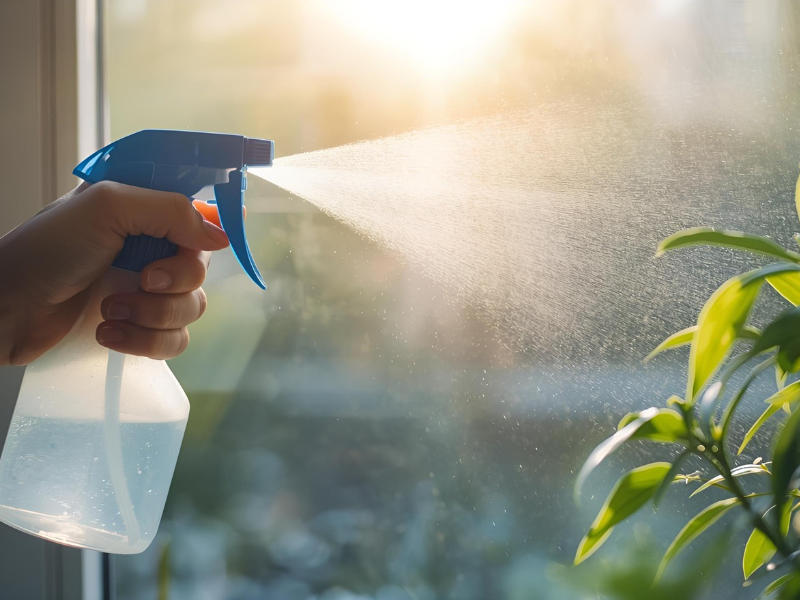

Trigger sprayers have become a staple in households, gardens, and industries—all thanks to their user-friendly design. What makes a trigger spray stand out from other dispensers is its effort-saving feature: even with repeated use (e.g., cleaning a large room or watering a garden), users rarely feel hand fatigue. This convenience isn’t by accident; it’s the result of clever mechanical design and ergonomic engineering, working together to reduce the force needed to activate the spray. Below, we break down the core principles behind the effort-saving design of trigger sprayand how components like trigger spray nozzles contribute to this efficiency.
The most critical part of an effort-saving trigger spray is its lever (trigger) structure, which applies basic mechanical principles to minimize force.
A trigger spray’s trigger acts as a third-class lever—where the fulcrum (fixed point) is at the base of the trigger (connected to the sprayer body), the effort is applied at the user’s finger (the middle of the trigger), and the load (pressure on the pump) is at the end of the trigger (connected to the pump piston).
Force Advantage: In this lever setup, the distance from the effort point (finger) to the fulcrum is longer than the distance from the load point (pump) to the fulcrum. According to the lever principle (Force × Distance = Constant), a longer effort arm means less force is needed to generate the same pressure on the pump. For example, a standard trigger spray has an effort arm of 4-5cm and a load arm of 1-2cm—this reduces the required force by 50-75% compared to pressing the pump directly with your finger.
Smooth Rotation: The fulcrum is fitted with a small plastic or metal pin that allows the trigger to rotate freely. This minimizes friction, so even light pressure from your finger can move the trigger and activate the pump.
The shape of the trigger also boosts effort savings:
Curved Ergonomic Design: Most trigger spray triggers have a curved shape that fits the natural curve of your index finger. This distributes the effort across a larger area of your finger (instead of concentrating it on a small spot), reducing strain and making it easier to apply consistent pressure.
Wider Contact Surface: The part of the trigger where your finger presses is often wider (1-1.5cm) than the rest of the lever. A wider surface means less pressure per square centimeter on your skin, making long-term use (e.g., 10+ minutes of spraying) more comfortable.
Even with a great lever, a trigger spray would feel stiff if its pump and valve have high friction. Effort-saving designs focus on minimizing resistance in these internal components.
The pump piston (connected to the trigger) moves up and down to draw liquid from the bottle and push it to the trigger spray nozzles. To reduce friction:
Material Choice: Pistons are made of soft, low-friction plastics (e.g., LDPE) or rubber-coated plastic. These materials slide easily against the pump’s inner wall (usually made of PP plastic) without sticking.
Pre-Lubrication: Many high-quality trigger spray pumps are pre-lubricated with food-grade silicone oil. This thin lubricant layer eliminates metal-on-plastic or plastic-on-plastic friction, so the piston moves with minimal force—even when the sprayer is new.
The one-way valve (inside the pump) controls liquid flow: it opens to let liquid into the pump when the trigger is released and closes to push liquid to the trigger spray nozzles when the trigger is pressed. Effort-saving valves are designed with:
Soft Seals: The valve uses a thin silicone or rubber seal instead of a rigid plastic one. A soft seal requires less pressure to open/close, unlike rigid seals that need extra force to overcome stiffness.
Precise Sizing: The valve’s opening is matched to the pump’s volume. A properly sized valve ensures liquid flows smoothly without backpressure—so you don’t have to press harder to “force” liquid through a too-small opening.
While trigger spray nozzles are mainly for controlling spray pattern (mist/stream), their design also affects effort savings by avoiding “overworking” the pump.
Trigger spray nozzles have a fixed or adjustable flow rate (e.g., 0.5-2ml per spray). Effort-saving designs use a flow rate that matches the pump’s capacity:
If the nozzle’s opening is too small, the pump has to build up extra pressure to push liquid through, requiring more force on the trigger.
If the opening is too large, liquid flows too quickly, but the pump can’t keep up—leading to weak spray and wasted effort.
A well-designed trigger spray nozzle balances flow rate with pump capacity, so you get a strong, consistent spray with minimal trigger pressure.

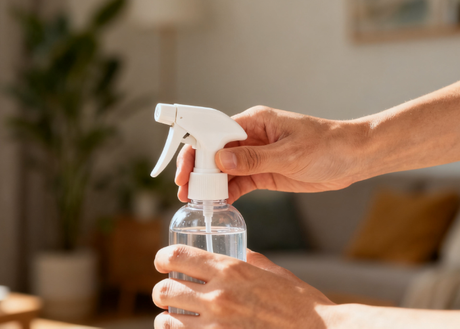

Many trigger spray nozzles have adjustable modes (mist/stream/off). The best designs switch between modes without increasing force:
The nozzle’s internal baffle (which controls spray pattern) rotates smoothly with a twist of the nozzle cap—no need to press harder for mist or stream. This ensures you can switch between tasks (e.g., misting plants to streaming cleaner) without extra effort.
The handle of the trigger spray works with the trigger to reduce overall hand fatigue, even if it doesn’t directly “save force.”
The handle is angled (usually 15-20° from the bottle body) to align with your hand’s natural posture when holding the sprayer. When you grip the handle, your wrist stays straight (not bent up or down), and your fingers rest comfortably on the trigger. This reduces strain on your wrist and forearm muscles, making it easier to apply consistent pressure for longer periods.
The handle often has a textured or rubberized surface. This prevents the sprayer from slipping in your hand (even if it’s wet), so you don’t have to grip harder to keep it steady. A secure grip means less wasted effort on “holding” the sprayer and more on activating the trigger.
The effort-saving design of a trigger spray is a combination of mechanical ingenuity and ergonomic care: the lever mechanism multiplies force, low-friction pump/valve reduce resistance, trigger spray nozzles optimize flow, and the ergonomic handle supports comfortable use. Together, these features mean you can use a trigger spray for minutes (or even hours) without hand fatigue—whether you’re cleaning your home, watering plants, or applying industrial cleaners.
Next time you use a trigger spray, take a moment to notice how easily the trigger moves: it’s not just “simple”—it’s the result of thoughtful engineering that puts user comfort first. For brands or consumers choosing a trigger spray, prioritizing these design elements ensures a tool that’s both efficient and easy to use.To learn more information about spray bottles,you can visit our website:www.packsubir.com.Please contact us if you have any questions.Our number is 86-574-88390029 and email is samuel@subircosmetics.com.
