The caliber (mouth diameter) of a spray bottle and the matching nozzle directly determine its usability—whether it’s a fine mist bottle for skincare, a travel pocket spray bottle for trips, or a trigger sprayer for household cleaning. Choosing the wrong nozzle for your bottle’s caliber leads to leaks, uneven spray, or even unusable products. This guide breaks down how to match nozzles to common spray bottle calibers (small, medium, large), ensuring a tight seal, smooth dispensing, and optimal performance.
First, clarify the three main caliber categories—each corresponds to specific bottle uses and nozzle types:
Common Bottles: Mini travel pocket spray bottle (10-50ml), small fine mist bottle for facial toner, or perfume sample bottles. Their narrow mouths prioritize portability and controlled, small-volume dispensing.
Key Trait: Lightweight, often made of PET plastic or thin borosilicate glass, designed for on-the-go use (e.g., in purses or carry-ons).
Common Bottles: Regular fine mist bottle (100-200ml) for skincare, household cleaning sprayers (non-heavy-duty), and refillable body spray bottles. This is the industry “standard” caliber, compatible with most universal nozzles.
Key Trait: Balances portability and capacity, used for daily scenarios like facial misting, plant watering, or light cleaning.
Common Bottles: Trigger sprayers for concentrated cleaners, large plant misting bottles (500ml+), or sprayers for thick liquids (e.g., diluted hair conditioner). Their wide mouths allow easy refilling and adaptation to high-flow nozzles.
Key Trait: Sturdy, often made of HDPE plastic for durability, designed for heavy or frequent use.

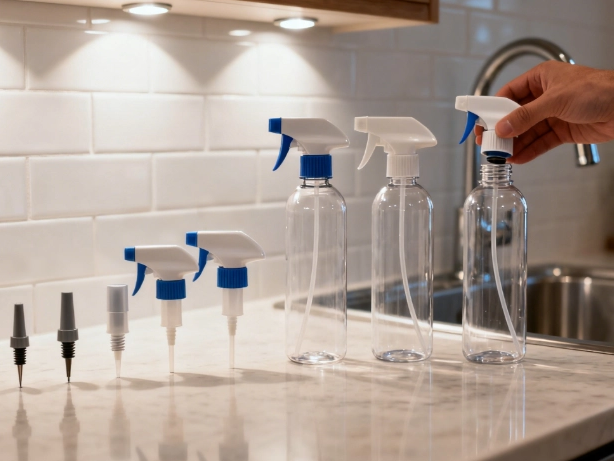

Matching nozzles to calibers relies on three core rules: thread compatibility, flow matching, and scenario adaptation. Below is a detailed breakdown for each caliber:
Nozzle Type to Choose:
Mini Fine Mist Nozzles: The top choice for small travel pocket spray bottle or mini fine mist bottle. These nozzles have a narrow interface (12-16mm) with fine threads (to fit small bottle mouths) and produce 0.3-0.8mm droplets—ideal for facial mist, perfume, or travel-sized hair detangler.
Press-Type Mini Pumps: For ultra-small bottles (10-30ml), choose press-type nozzles (no continuous spray) to avoid leaks. They’re often used for travel-sized hand sanitizer sprays.
Matching Tips:
Ensure the nozzle’s thread pitch matches the bottle (most small calibers use “fine threads” with 0.5-0.8mm pitch). Mismatched threads cause leaks—test by screwing the nozzle 2-3 turns; it should feel tight without forcing.
Avoid large nozzles (e.g., 18mm+) for small calibers—even if you force them on, the seal will fail, leading to liquid seepage.
Nozzle Type to Choose:
Universal Fine Mist Nozzles: The most common option for standard fine mist bottle (100ml+). They fit 18-22mm mouths, have standard threads (1mm pitch), and work for water-based liquids (toner, plant mist, body spray). Most refillable spray bottles in this caliber use these nozzles.
Adjustable Mist/Stream Nozzles:For medium-caliber cleaning or plant sprayers, choose nozzles that switch between mist (for wide coverage) and stream (for targeted use). They’re compatible with 18-20mm calibers and ideal for dual-purpose bottles (e.g., cleaning counters and watering succulents).
Mini Trigger Sprayers:Compact trigger nozzles (designed for medium calibers) work for small cleaning bottles (200ml). They’re easier to press than full-size triggers and fit 20-22mm mouths.
Matching Tips:
Most medium-caliber nozzles are “universal”—check the product label for “18-22mm compatible” to avoid mistakes.
For oil-based liquids (e.g., diluted essential oils), choose medium-caliber nozzles with silicone seals (instead of rubber)—silicone resists oil degradation and prevents leaks.
Nozzle Type to Choose:

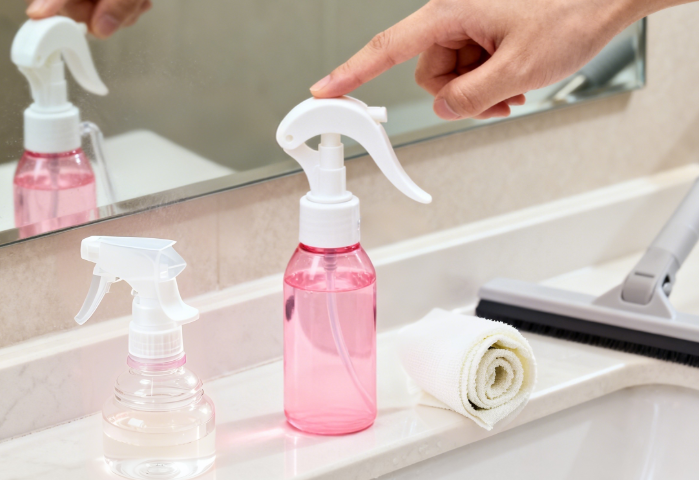

Full-Size Trigger Sprayers: The primary choice for large-caliber bottles (500ml+). They fit 24-28mm mouths, have thick threads (1.2-1.5mm pitch), and deliver high flow (1-2ml per spray)—perfect for concentrated cleaners, garden fertilizers, or thick liquids (e.g., diluted floor cleaner).
Wide-Opening Stream Nozzles: For very thick liquids (e.g., creamy hair masks or undiluted plant nutrients), choose nozzles with 1-2mm openings (wider than standard mist nozzles). They prevent clogging and fit 24mm+ calibers.
Industrial-Grade Nozzles: For large-caliber bottles used in workshops (e.g., degreaser sprayers), choose metal (stainless steel) nozzles with 26-30mm interfaces. They’re durable and resist corrosion from harsh chemicals.
Matching Tips:
Large-caliber nozzles often require a “gasket seal” (included with most triggers). Ensure the gasket is made of food-grade silicone or EPDM rubber—cheap rubber gaskets degrade quickly with chemicals.
Avoid using small nozzles on large calibers—even with adapters, the flow will be too slow, and the seal will be unreliable.
Caliber Measuring Tool: Use a digital caliper or a simple ruler to measure your bottle’s mouth diameter (measure the inner edge for accuracy). This avoids guessing (e.g., mistaking a 20mm bottle for 18mm).
Leak Test: After matching, fill the bottle with water, screw on the nozzle, and shake gently. Turn it upside down for 1 minute—no leaks mean a good match. For travel pocket spray bottle or trigger sprayer, also press the nozzle 5 times to check for consistent flow.
Thread Compatibility Chart: Most nozzle brands provide a chart (e.g., “18mm = M18x1 thread”)—match your bottle’s caliber to the thread size. For example, a 22mm medium-caliber bottle usually uses M22x1.2 threads.
Matching nozzles to spray bottle calibers is a simple but critical step—whether you’re using a small travel pocket spray bottle,or a trigger sprayer. Small calibers (12-16mm) need mini, low-flow nozzles for portability; medium calibers (18-22mm) work with universal, multi-function nozzles for daily use; large calibers (24mm+) require heavy-duty, high-flow nozzles for thick liquids or high-volume tasks.
By measuring your bottle’s caliber, checking thread compatibility, and doing a leak test, you’ll ensure a tight seal, smooth spray, and long-lasting use. A well-matched nozzlenot only improves usability but also prevents waste—helping you get the most out of your spray bottle, no matter the scenario.After reading this article, do you know how to replace the matching nozzle of the spray bottle? If you want to learn more about the use of spray bottles, please visit our website: https://www.packsubir.com. If you have any questions, please contact us by 0086-574-88390029 or samuel@subircosmetics.com.
